DL series screw sludge dehydrator/ screw type sludge dewatering machine

Working principle：

Sludge Dewatering machine consists of multiple rings， an active ring and a volute filter, which is able to complete the sludge thickening and press dewatering. In the concentration part, filtrate quickly discharges and never blocks through the relative movement between fixed and moved, In the dewatering part, the conveyor makes volume shrink and enhances the internal pressure by pressure plate, the novel model replaces the traditional model. The advanced solid-liquid separation and self-cleaning technology will bring new times.

Sludge dewatering principle:

The interval in the thickening part of the sludge dehydrator is 0.5mm, and the dewatering part is 0.3mm and 0.15mm, the screw pitch from the thickening part to the dewatering part turns to narrow through the rotating of the screw edge to push up the floating plates which make the space narrow while it goes to outlet. So, the sludge dewatering unit generates pressure and high pressure by a pressure plate, Discharge the sludge cakes.

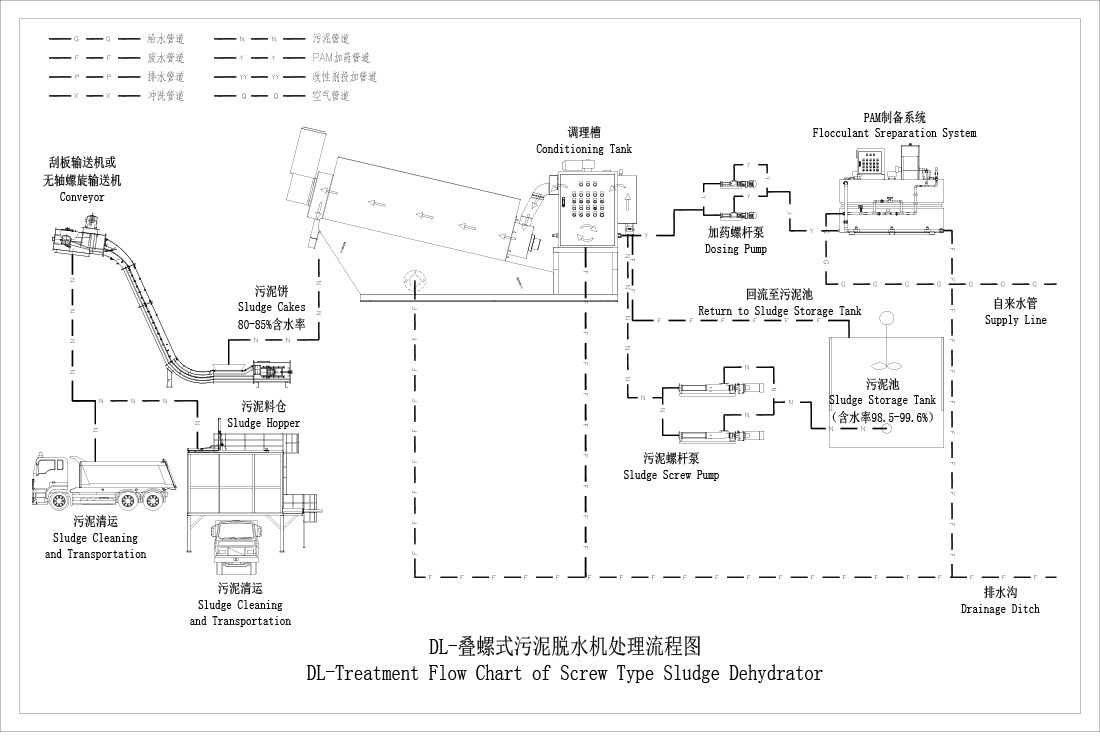

Process Flow Chart

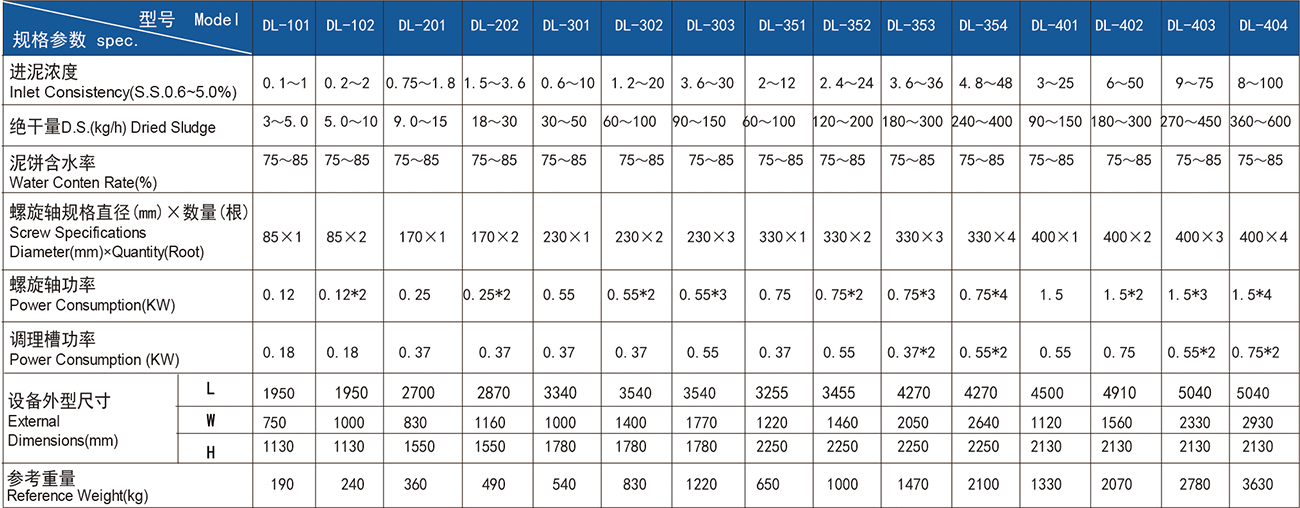

Product Parameters

The company reserves the right to make continuous improvements. All parameters are subject to confirmation by both parties. If you have any technical questions, please contact us.

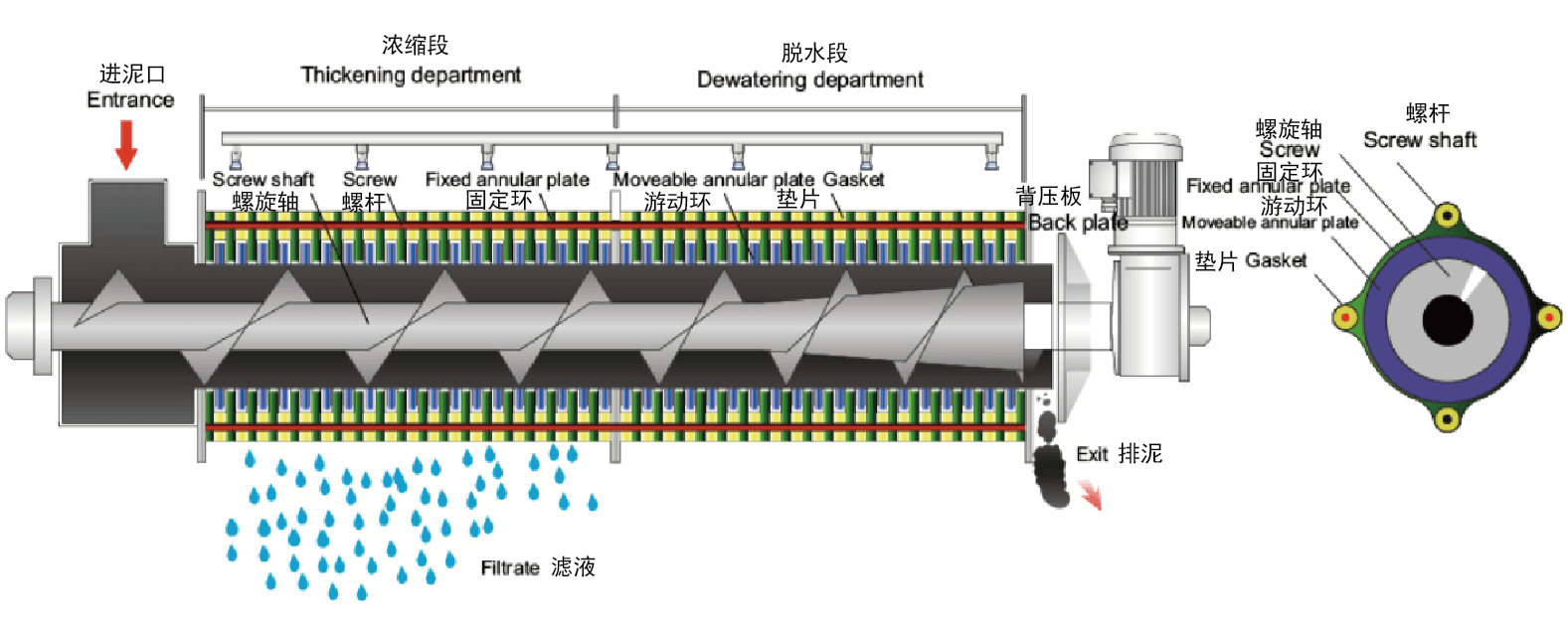

Internal Structure

Internal structure
