FTB series rotary drum sludge dewatering machine

Working principle

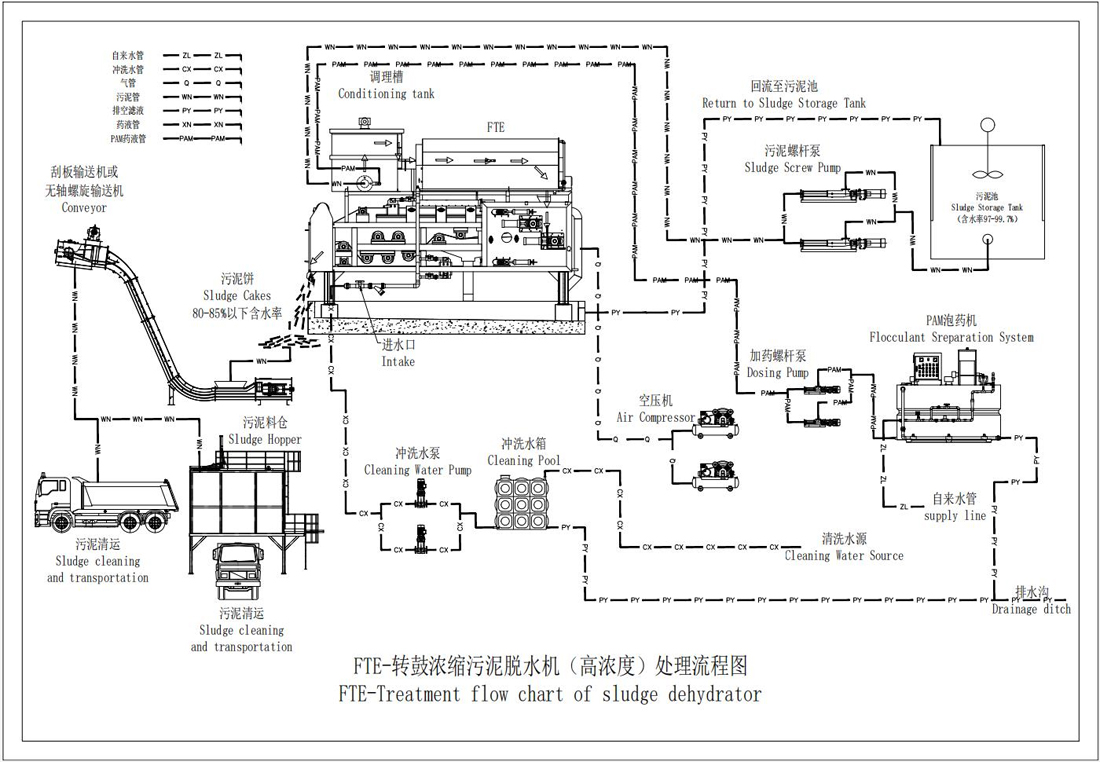

1. The machine was composed of rotary drum and belt press dewatering. The processing flow is sludge inlet, polymer dosing, mixing, reaction, thickening and dewatering under steady flow conditions to remove the water from the sludge.

2. The sludge and flocculants are added to the conditioning tank together and after proper stirring and retention time, a good gel olume is formed.

3. The sludge plume overflows into the drum by gravity, rotates and thickens through relative motion, increasing the speed of free water separation and sludge concentration to form a solid sludge mass.

4. The sludge falls into the gravity dewatering zone of the upper belt filter to get the second stage of gravity dehydration. At the same time, the sludge equalizer is positioned and adjusted to force the sludge to be uniform in thickness and width.

5. The evenly divided sludge dropped to the gravity dehydration zone of the lower belt filter to get the third stage of gravity dehydration. At this time, the sludge solids concentration can reach over 8-10%.

6. The sludge begins to enter into the initial pressure wedge-shaped throat, initial pressure →low pressure →medium pressure→high pressure, and squeezes and dewaters in a horizontal wave-shaped motion track.

7. The sludge cake attached to the belt filter is derived, and peeled of by a scraper and dropped into the next stage processing unit.

8. Sludge cake solid content can reach to 15-22%.

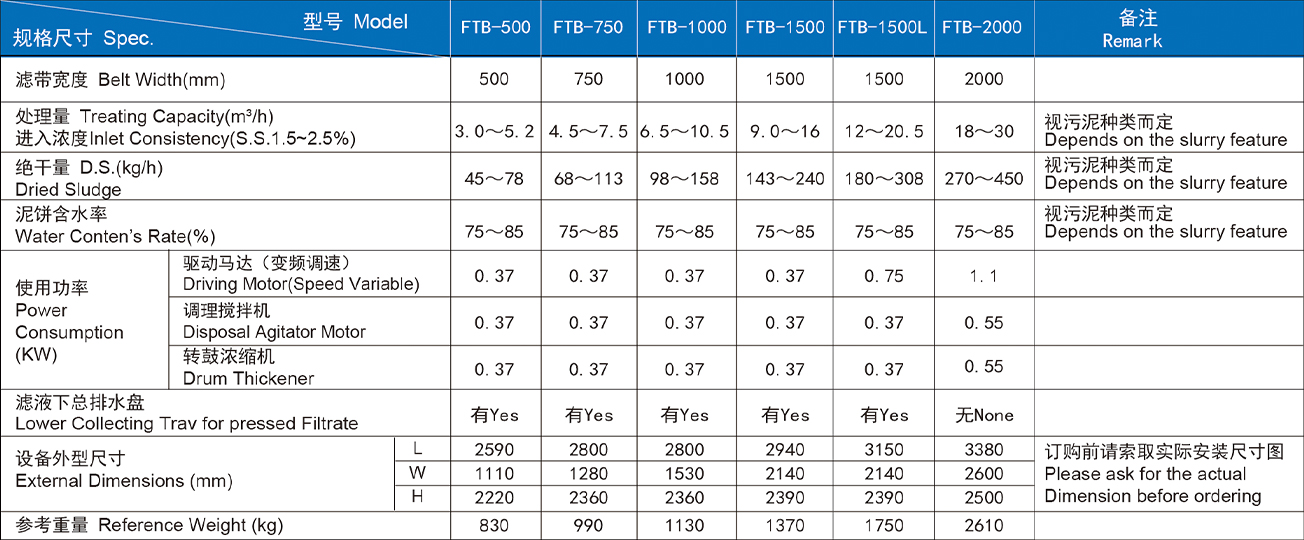

Technical character

This product has high dewatering efficiency, large sludge treatment capacity, automatic continuous operation, low energy consumption, low noise, simple structure, semi-closed structure, and convenient maintenance; The machine operation is simple, general staff after a short time of learning, you can master the whole operation process.
