FBT series belt type sludge thickner

PREV：FRDT series rotary drum sludge thickener NEXT：No next article

Working Principle：

FBT series belt thickener is designed for sludge thickening and dewatering of solid content 0.4-1.5%, the final dried sludge content could be 5-7% for normal non-processing sludge from municipal biochemistry. The dried sludge content 10-12% for certain sludge when it is equipped with a hydrophobic plough, pressure plate or pressure axis. The belt operating speed can be adjusted between 3-18 meters/min.

Characteristics of belt sludge thickener：

1. Solid-capture rate 98%

2. High-performance, durable and no maintenance basically!

3. Low energy consumption and low rotating speed.

4. Low polymer consumption.

5. Entirety body is made of stainless steel and polymer structure.

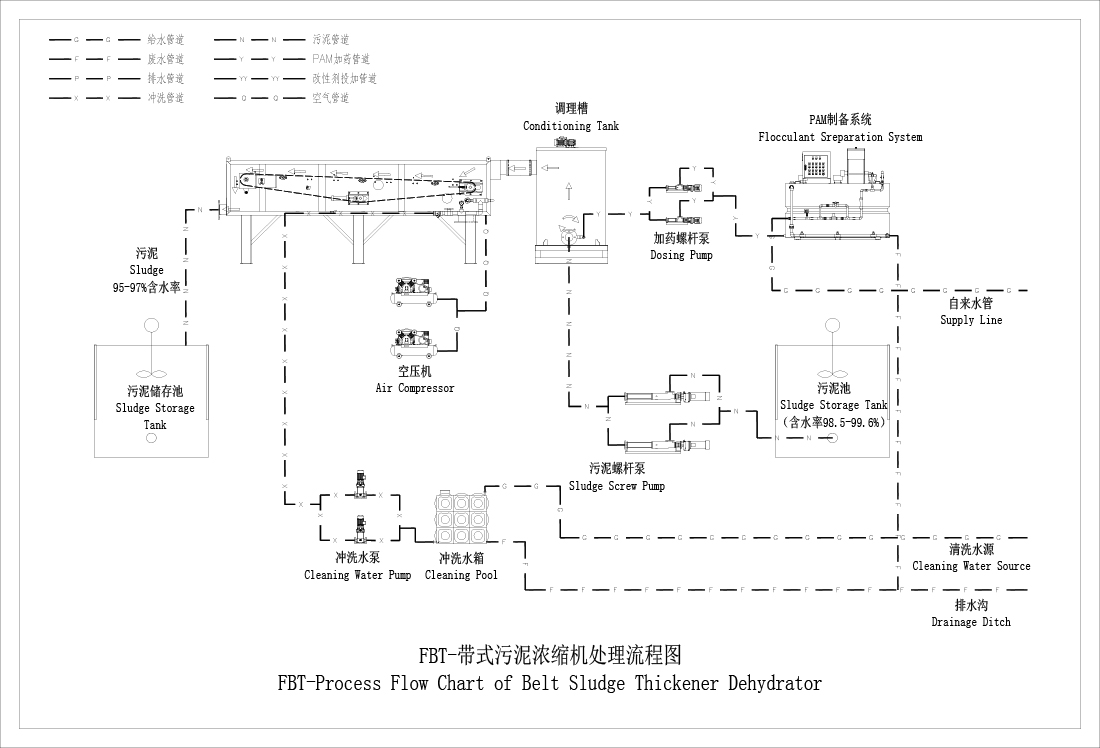

Process Flow Chart

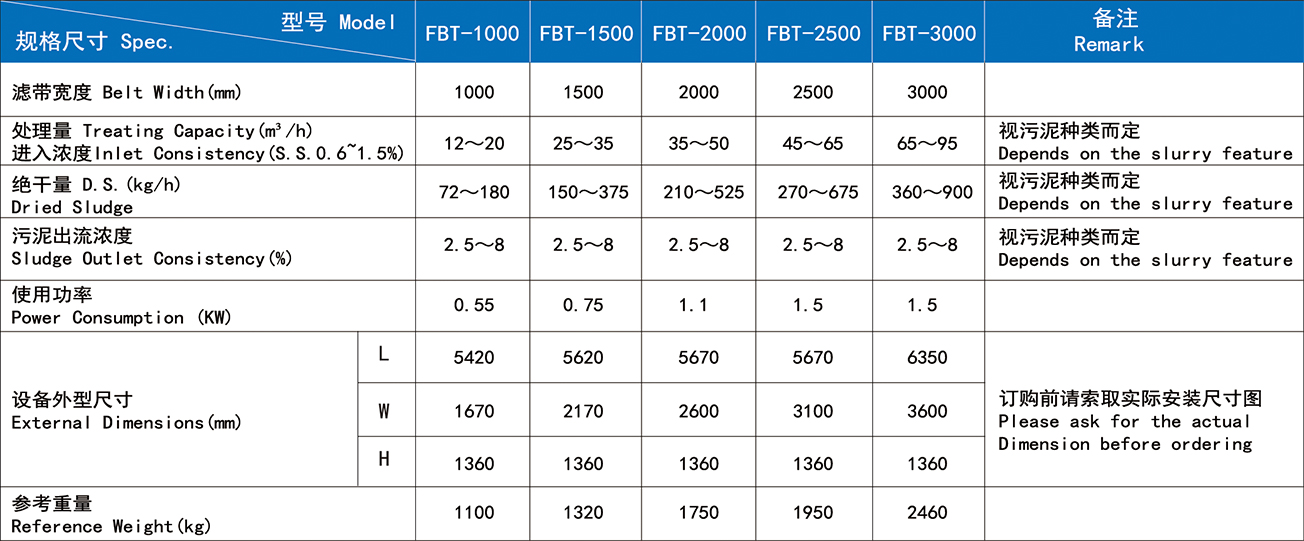

Product Parameters

The company reserves the right to make continuous improvements. All parameters are subject to confirmation by both parties. If you have any technical questions, please contact us.
